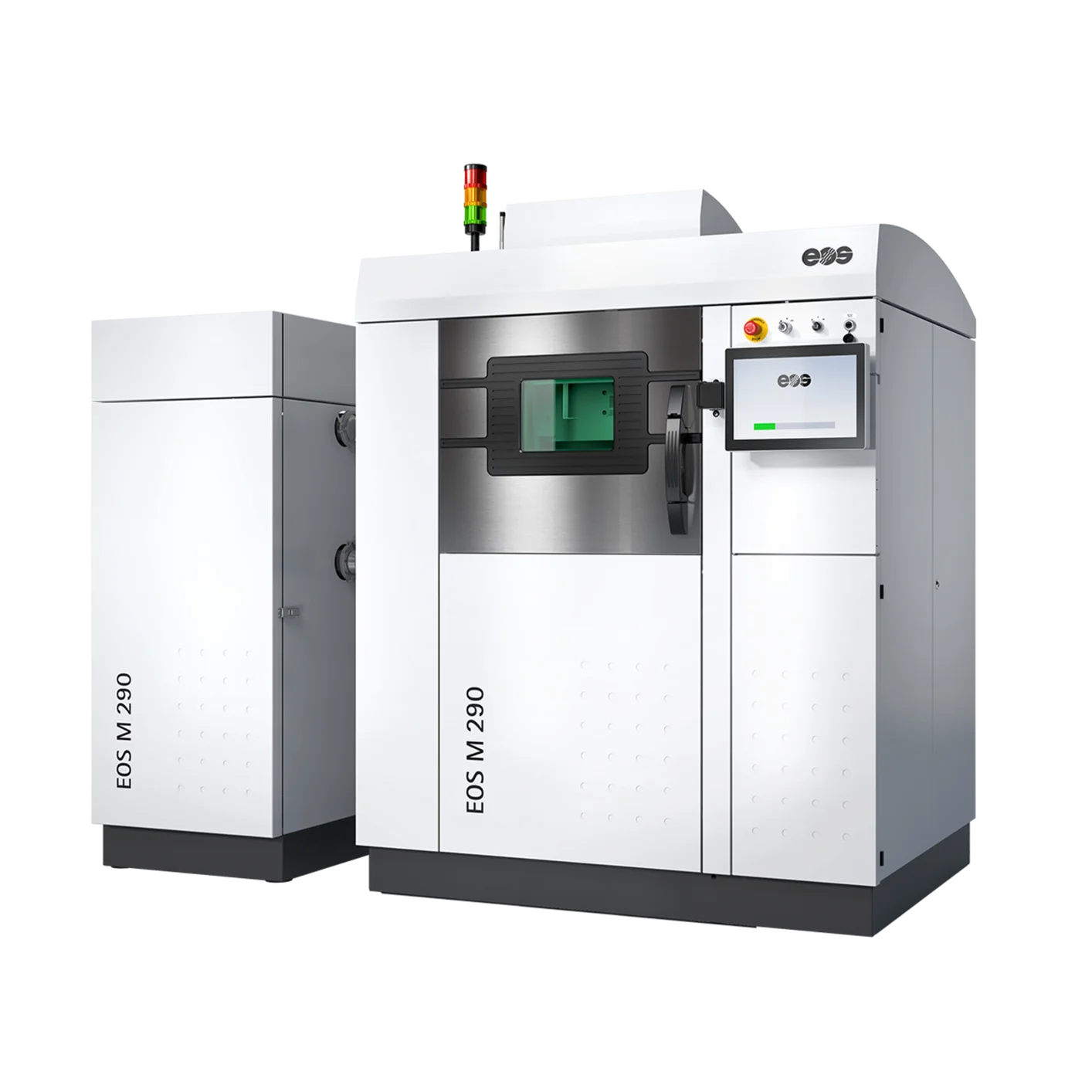

EOS M290
The Benchmark in Metal AM
Proven technology. Repeatable results. Production-ready performance.The EOS M 290 is a proven metal additive manufacturing platform, trusted for serial production since its introduction in 2014. Its robust architecture and high-quality 400 W fiber laser deliver the precision and consistency required to manufacture complex metal components with reliable, homogeneous properties.
With an extensive portfolio of validated materials and processes, the M 290 gives manufacturers the flexibility to produce components across demanding industrial applications. Advanced monitoring and quality-management capabilities provide real-time insight into production, helping maintain consistent results from part to part and build to build.
From intricate prototypes to repeatable series production, the EOS M 290 combines precision, process control, and production reliability to turn digital designs into high-performance metal parts.
Repeatable Excellence
Exceptional laser quality and detail resolution ensure repeatable results — even for highly complex parts, every single time.
Material Versatility
One of the widest ranges of validated materials and processes available, covering nearly every industrial application.
From Start to Part Fast
Fast, flexible, dependable, and cost-effective production of metal parts directly from CAD data.
SPECIFICATIONS
Technical Data
Build Volume
250 x 250 x 325 mm
Laser Type
Yb-fiber laser, 1 x 400 W
Precision Optics
1 F-theta lens, 1 high-speed scanner
Scan Speed
Up to 7.0 m/s
Focus Diameter
Approx. 100 µm
Power Supply
1 x 32 A
Power Consumption
Max. 8.5 kW / typical 2.4 kW
Compressed Air Supply
7 Bar, 20 m³/h
SOFTWARE
Built-In Software Suite
Build Software
Multi-user build preparation with flexible material management and advanced licensing options.
Smart Monitoring
Comprehensive build monitoring paired with heat regulation to keep every build within set parameters.
System Suite
Streamlines production by integrating with MES and shop-floor IT systems, generating detailed quality reports.
